[10.10.09] Toothpaste for dinner [Retro Style ]
| This page has been updated for formatting but is quite old: These images were thrown onto the All electronics 256x128 LCD. Here's some details about adding a backlight. |
| What? |
Conclusion | Image Directory |
| Some Project Background | |
| This project was a quick idea. I had purchased a 256 x 128 pixel graphic LCD from all-electronics, here's a link to the pdf [link] [local copy] |
 |

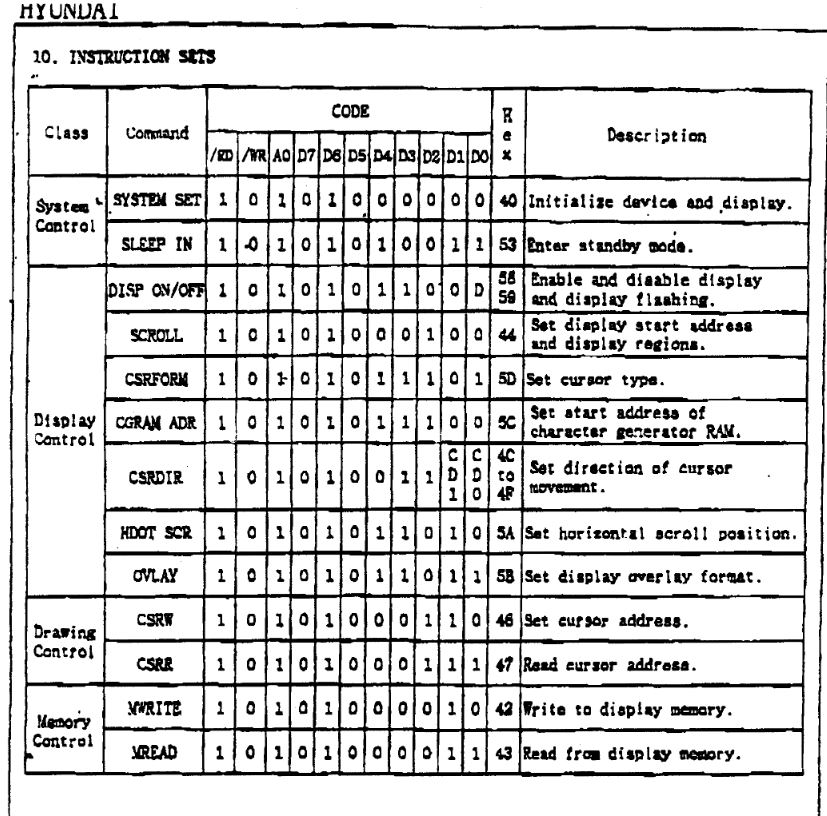

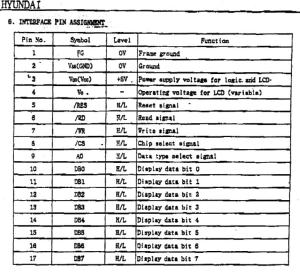

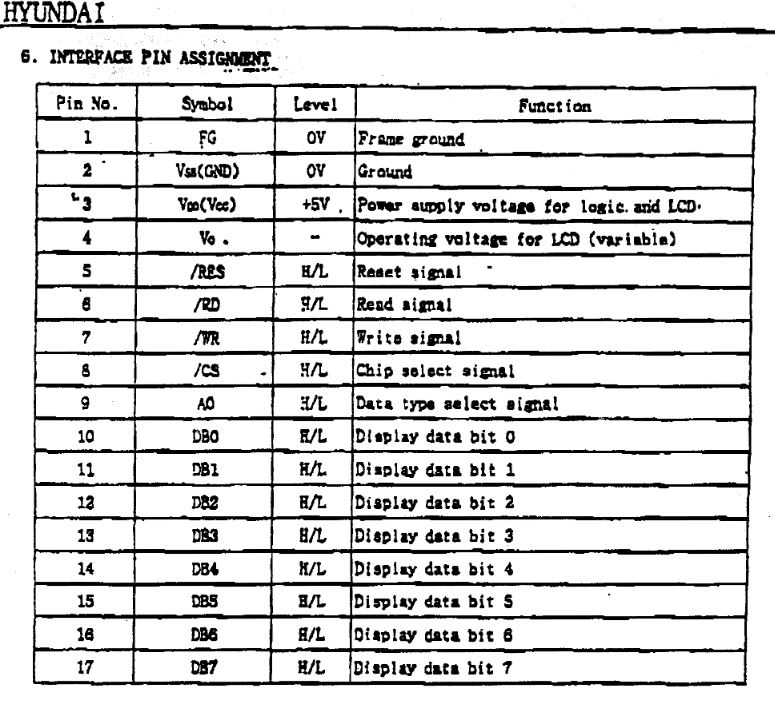

| The
actual inteface spec for the display is a HG25504, extra double
photocopied. The display controller is an Epson SED1330F. Here's a more
recent page detailing more about the display: https://gitlab.com/richteel/LCD-101 |  |

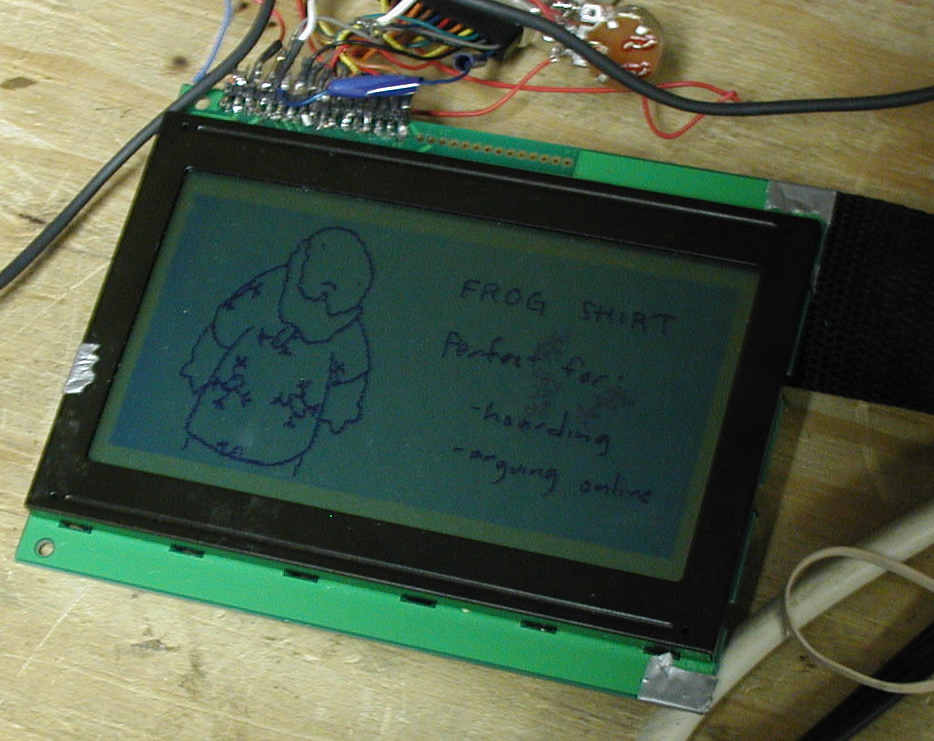

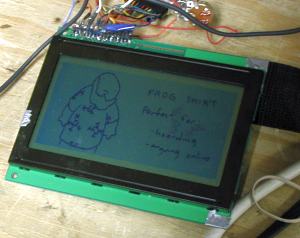

| Frog Shirt Link to comic: [link] |  |

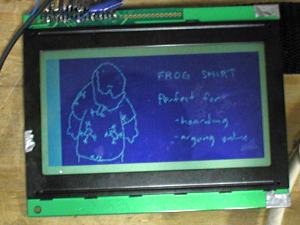

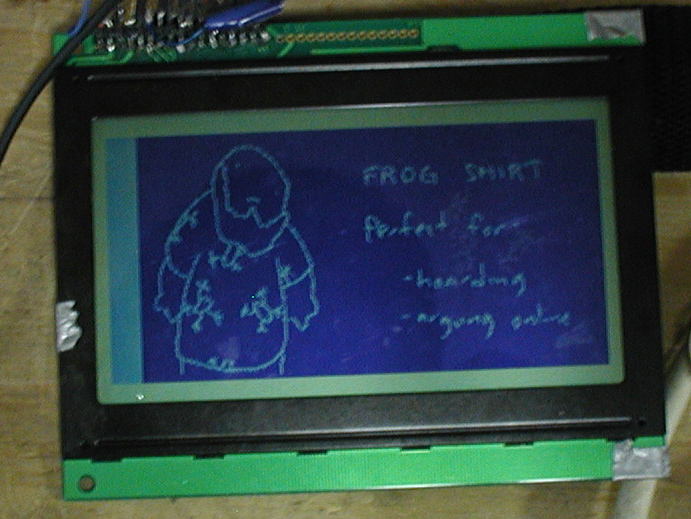

| Frog Shirt (inverted) |  |

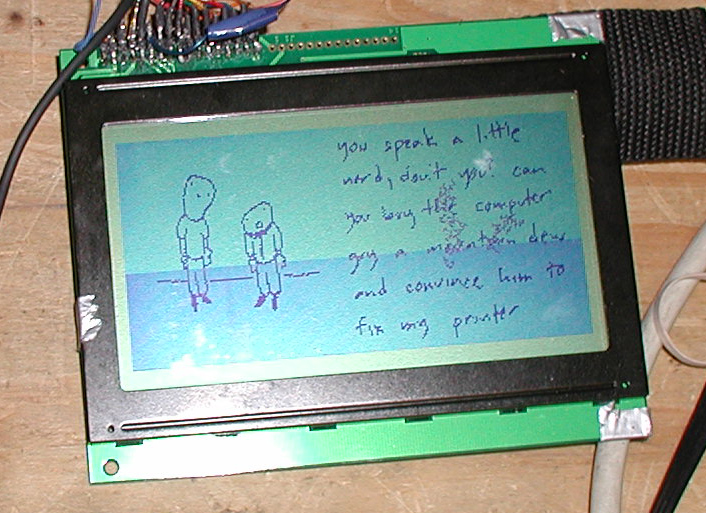

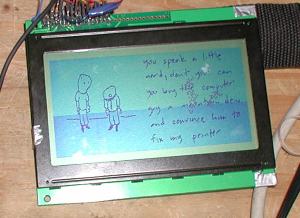

| Do you speak Geek? Link to comic: [link] |
 |
(There's
other photos in the photo gallery)
Concluding Remarks:- This was a quick project to display images on a large LCD, unfortunatley i didnt document things much aside from a few low resolution images.
If you have questions or comments, ask below or send over an email.
