Test images (Prototype .2)

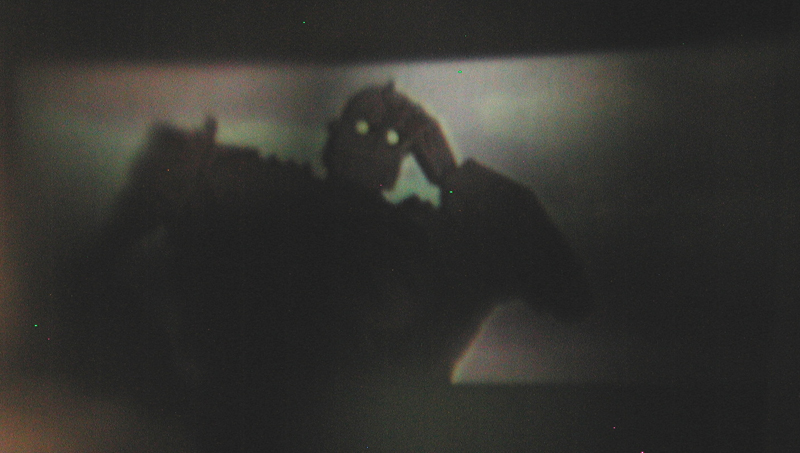

Excerpt from The Iron Giant [Big Robot]

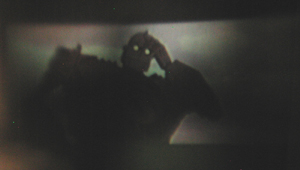

Excerpt from The Iron Giant [Menacing]

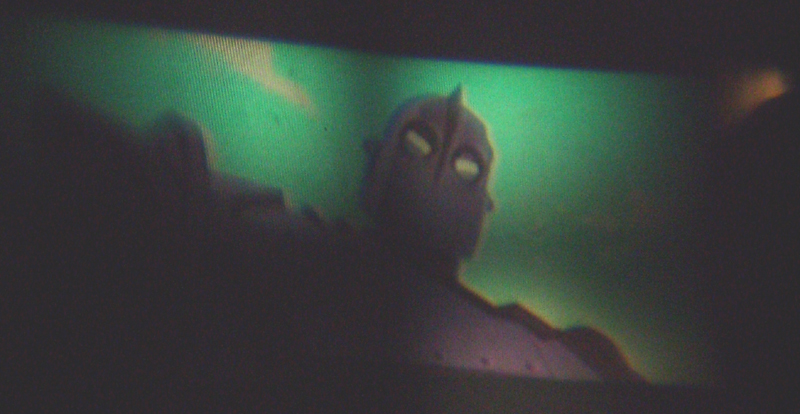

slight improvement

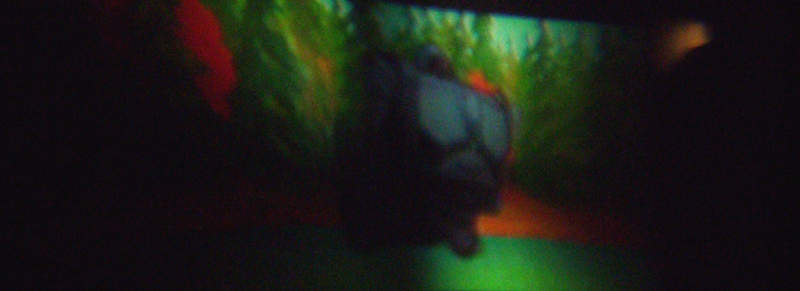

Iron Giant [Jump Into Lake]

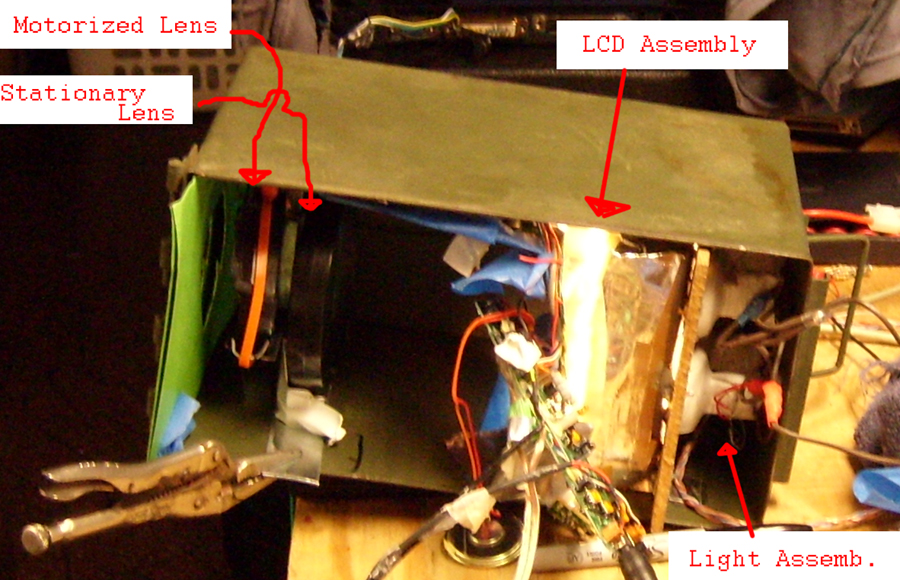

Actual Projector Prototype .2

Problems / solutions

1. There is a pronounced dark area in the middle of the screen.   As i decided to use 4 50W (equivalent light output) (5W power consumption) CFL lights, to minimize power consumption, the preformance was notably weaker than had i just used one single incandescent bulb. The benefits were a lack of heat production.  Theoretically only 20 watts of physical heat were produced in the lighting area, so there really wasnt a need for a fan. as a result, i tilted the bulbs so that the middle area would be fully lit.

Back to main project
